Description

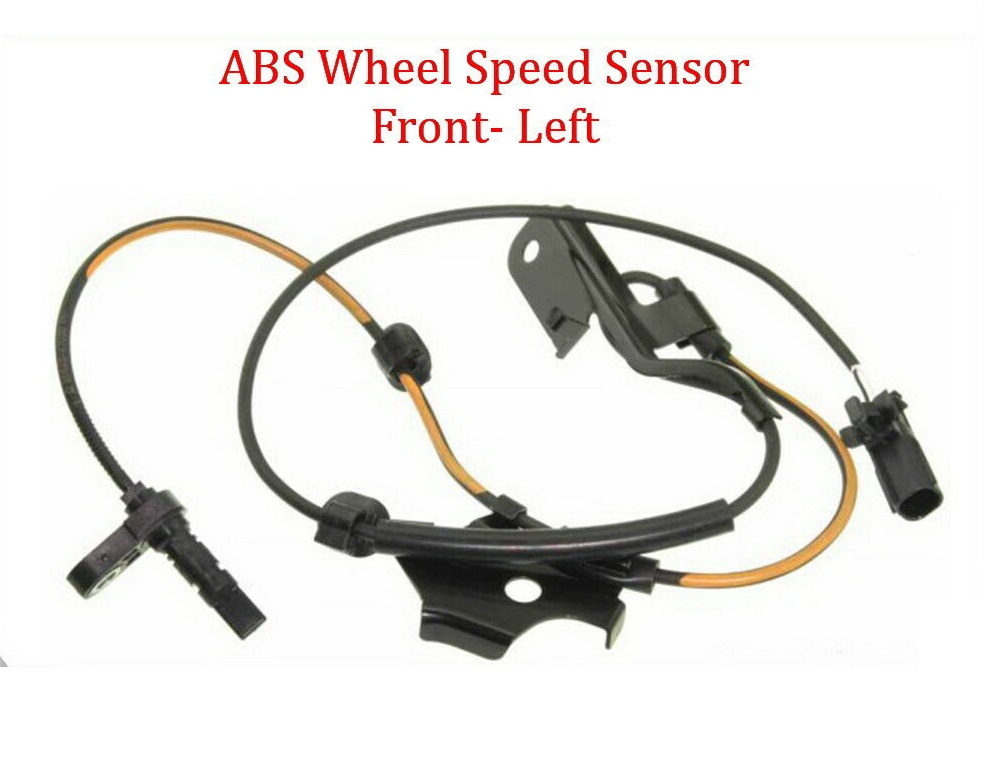

OE Spec ABS Wheel Speed Sensor Front Left Fits Toyota Prius C 2012-2018 Models
ABS Wheel Speed Sensor
Front – Left
Quantity:Â 1Â Piece
Quantity Needed:1Â Per Vehicle
==========================
Part#
ABS3409FL
============
Cross Reference
8954347030
8954352100
89543-47030
89543-42100
ABS3409FL
ALS2369
========
Specifications
| Category | ABS Wheel Speed Sensor |
| Location | Front – Left |

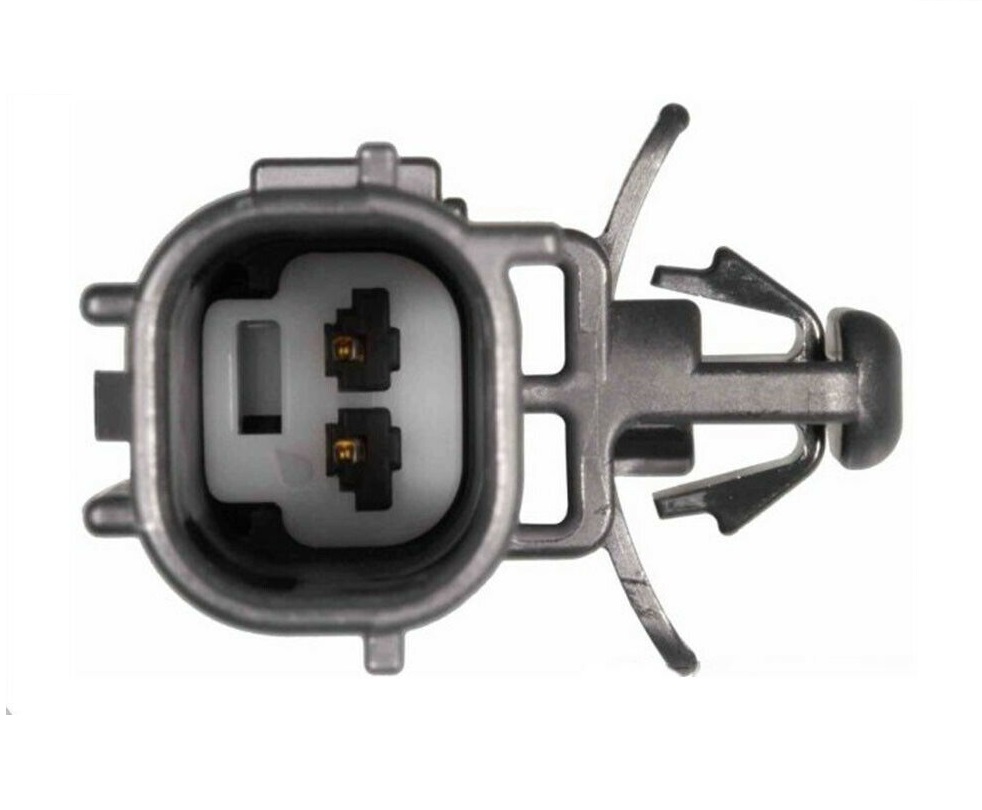

| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Harness Length | 46 in / 1219 mm |
| Mounting Hardware Included | No |
| Mounting Location | Spindle |
| Mounting Type | Flange |
| Number of Bolt Holes | 2 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
==========================Â Â Â
Fits:
| TOYOTA | PRIUS C | 2012-2018 |
===================================
The wheel speed sensor will be located at each individual wheel or on axle housingÂ
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensorÂ
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensorÂ
